不銹鋼接頭
SUS316 Tube Fitting

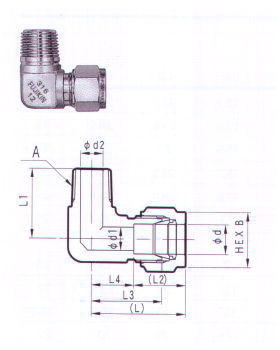

MALE ELBOW
編 號
口徑
d
A
d1
d2
B
L
L1
L2
L3
L4
PUWL-3A
3
R1/8
2.4
5
10
23.7
20
13.1
17
10.6
PUWL-3B
3
R1/4
2.4
5
10
23.7
22
13.1
17
10.6
PUWL-4A
4
R1/8
3
5
12
24.5
20
13.6
18
10.9
PUWL-4B
4
R1/4
3
5
12
24.5
22
13.6
18
10.9
PUWL-6A
6
R1/8
5
5
14
26
20
15.5
18.5
10.5
PUWL-6B
6
R1/4
5
5
14
26
22
15.5
18.5
10.5
PUWL-6C
6
R3/8
5
5
14
29.5
25
15.5
22
14
PUWL-6D
6
R1/2
5
5
14
32.5
32
15.5
25
17
PUWL-8A
8
R1/8
6.5
5
16
29.5
24
16.2
22
13.3
PUWL-8B
8
R1/4
6.5
6.5
16
29.5
24
16.2
22
13.3
PUWL-8C
8
R3/8
6.5
6.5
16
29.5
25
16.2
22
13.3
PUWL-8D
8
R1/2
6.5
6.5
16
32.5
32
16.2
25
16.3
PUWL-10A
10
R1/8
8
5
19
31.9
24
17.5
24
14.4
PUWL-10B
10
R1/4
8
7.5
19
31.9
24
17.5
24
14.4
PUWL-10C
10
R3/8
8
8
19
31.9
25
17.5
24
14.4
PUWL-10D
10
R1/2
8
8
19
32.9
32
17.5
25
15.4
PUWL-12A
12
R1/8
10
5
22
35.3
29
23
25
12.3
PUWL-12B
12
R1/4
10
7.5
22
35.3
29
23
25
12.3
PUWL-12C
12
R3/8
10
10
22
35.3
29
23
25
12.3
PUWL-12D
12
R1/2
10
10
22
35.3
32
23
25
12.3
編 號
口徑
d
A
d1
d2
B
L
L1
L2
L3
L4
PUWL-3.2A
3.2
R1/8
2.7
5
10
23.5
20
13
17
10.5
PUWL-3.2B
3.2
R1/4
2.7
5
10
23.5
22
13
17
10.5
PUWL-6.35A
6.35
R1/8
5
5
14
25.5
20
15
18.5
10.5
PUWL-6.35B
6.35
R1/4
5
5
14
25.5
22
15
18.5
10.5
PUWL-6.35C
6.35
R3/8
5
5
14
29
25
15
22
14
PUWL-6.35D
6.35
R1/2
5
5
14
32
32
15
25
17
PUWL-9.52A
9.52
R1/8
7.5
5
17
30
24
17.5
22
12.5
PUWL-9.52B
9.52
R1/4
7.5
7.5
17
30
24
17.5
22
12.5
PUWL-9.52C
9.52
R3/8
7.5
7.5
17
30
25
17.5
22
12.5
PUWL-9.52D
9.52
R1/2
7.5
7.5
17
33
32
17.5
25
15.5
PUWL-12.7A
12.7
R1/8
10
5
22
36
29
24
25
12
PUWL-12.7B
12.7
R1/4
10
7.5
22
36
29
24
25
12
PUWL-12.7C
12.7
R3/8
10
10
22
36
29
24
25
12
PUWL-12.7D
12.7
R1/2
10
10
22
36
32
24
25
12
PUWL-15.88D
15.88
R1/2
11.9
11.9
26
38.1
35.1
24.4
27.9
13.7
PUWL-19.05E
19.05
R3/4
15.7
15.7
29
39.9
36.8
24.4
29.7
15.5
PUWL-25.4F
25.4
R 1
22.4
22.4
38
49
46.5
31.2
36.8
17.8
