不銹鋼接頭 |
|
SUS316
Tube Fitting
|

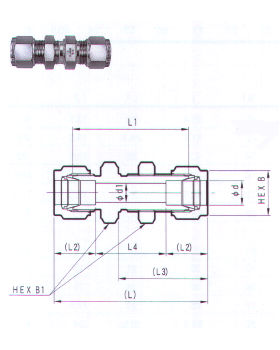

BULKHEAD UNION |
 |
|
|
編 號 |
口徑 |
|
|
d1 |
B |
B1 |
L |
L1 |
L2 |
L3 |
L4 |
|
PUWP-3 |
3 |
8 |
10.5 |
2.4 |
10 |
12 |
49.4 |
36 |
13.1 |
29.2 |
23.2 |
|
PUWP-4 |
4 |
9.6 |
12 |
3 |
12 |
14 |
53.4 |
40.4 |
13.6 |
31.9 |
26.2 |
|
PUWP-6 |
6 |
11.2 |
12 |
5 |
14 |
14 |
57 |
42 |
15.5 |
33.5 |
26 |
|
PUWP-8 |
8 |
12.8 |
13.5 |
6.5 |
16 |
17 |
60.5 |
45.5 |
16.2 |
35.5 |
28.1 |
|
PUWP-10 |
10 |
16 |
12.5 |
8 |
19 |
22 |
64.6 |
48.8 |
17.5 |
37.5 |
29.6 |
|
PUWP-12 |
12 |
19.1 |
12.5 |
10 |
22 |
23 |
70.6 |
50 |
23 |
39.8 |
24.6 |
| |
|
|
|
|
|
|
|
|
|
|
|
|
PUWP-3.2 |
3.2 |
8 |
10.5 |
2.7 |
10 |
12 |
49 |
36 |
13 |
29 |
23 |
|
PUWP-6.35 |
6.35 |
11.2 |
12.5 |
5 |
14 |
14 |
56 |
42 |
15 |
33 |
26 |
|
PUWP-9.52 |
9.52 |
14.3 |
13.5 |
7.5 |
17 |
19 |
63 |
47 |
17.5 |
37 |
28 |
|
PUWP-12.7 |
12.7 |
19.1 |
13 |
10 |
22 |
23 |
72 |
50 |
24 |
40.5 |
24 |
|
PUWP-15.88 |
15.88 |
22.6 |
12.7 |
12.7 |
26 |
27 |
72.6 |
52.3 |
24.4 |
42.7 |
23.8 |
|
PUWP-19.05 |
19.05 |
25.8 |
16.8 |
16.8 |
29 |
30 |
79 |
58.7 |
24.4 |
47.5 |
30.2 |
|
PUWP-25.4 |
25.4 |
33.7 |
19.1 |
19.1 |
38 |
41 |
95.8 |
71.4 |
31.2 |
57.4 |
33.4 |
|
|
|
|
|
|
|
|
|
