不銹鋼接頭 |
|
SUS316
Tube Fitting
|

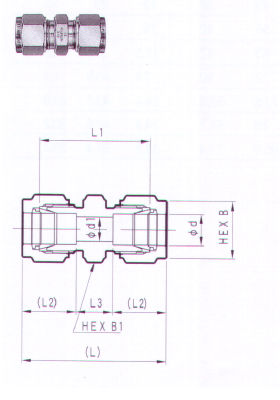

STRAIGHT UNION |
 |
|
|
編 號 |
口徑 |
d1 |
B |
B1 |
L |
L1 |
L2 |
L3 |
|
PUWF-3 |
3 |
2.4 |
10 |
10 |
35.4 |
22 |
13.1 |
9.2 |
|
PUWF-4 |
4 |
3 |
12 |
12 |
37.1 |
24.1 |
13.6 |
9.9 |
|
PUWF-6 |
6 |
5 |
14 |
14 |
41 |
26 |
15.5 |
10 |
|
PUWF-8 |
8 |
6.5 |
16 |
16 |
43 |
28 |
16.2 |
10.6 |
|
PUWF-10 |
10 |
8 |
19 |
19 |
46.8 |
31 |
17.5 |
11.8 |
|
PUWF-12 |
12 |
10 |
22 |
22 |
53.1 |
32.5 |
23 |
7.1 |
| |
|
|
|
|
|
|
|
|
|
PUWF-3.2 |
3.2 |
2.7 |
10 |
10 |
35 |
22 |
13 |
9 |
|
PUWF-6.35 |
6.35 |
5 |
14 |
14 |
40 |
26 |
15 |
10 |
|
PUWF-9.52 |
9.52 |
7.5 |
17 |
17 |
45 |
29 |
17.5 |
10 |
|
PUWF-12.7 |
12.7 |
12.7 |
22 |
22 |
54.5 |
32.5 |
24 |
6.5 |
|
PUWF-15.88 |
15.88 |
12.7 |
26 |
24 |
52.1 |
31.8 |
24.4 |
3.3 |
|
PUWF-19.05 |
19.05 |
15.7 |
29 |
27 |
53.6 |
33.3 |
24.4 |
4.8 |
|
PUWF-25.4 |
25.4 |
22.4 |
38 |
35 |
64.8 |
40.4 |
31.2 |
2.4 |
|
|
|
|
|
|
|
|
|
