不銹鋼接頭
SUS316 Tube Fitting

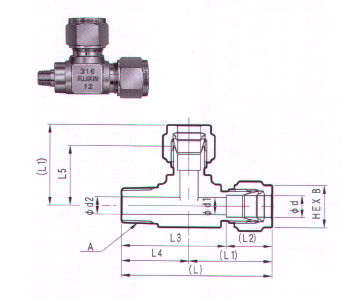

MALE RUN TEE
編 號
口徑
d
A
d1
d2
B
L
L1
L2
L3
L4
L5
PUWTL-3A
3
Rc1/8
2.4
5
10
43.7
23.7
13.1
30.6
20
17
PUWTL-3B
3
Rc1/4
2.4
5
10
45.7
23.7
13.1
32.6
22
17
PUWTL-4A
4
Rc1/8
3
5
12
44.5
24.5
13.6
30.9
20
18
PUWTL-4B
4
Rc1/4
3
5
12
46.5
24.5
13.6
32.9
22
18
PUWTL-6A
6
Rc1/8
5
5
14
46
26
15.5
30.5
20
18.5
PUWTL-6B
6
Rc1/4
5
5
14
48
26
15.5
32.5
22
18.5
PUWTL-6C
6
Rc3/8
5
5
14
54.5
29.5
15.5
39
25
22
PUWTL-6D
6
Rc1/2
5
5
14
64.5
32.5
15.5
49
32
25
PUWTL-8A
8
Rc1/8
6.5
5
16
53.5
29.5
16.2
37.3
24
22
PUWTL-8B
8
Rc1/4
6.5
6.5
16
53.5
29.5
16.2
37.3
24
22
PUWTL-8C
8
Rc3/8
6.5
6.5
16
54.5
29.5
16.2
38.3
25
22
PUWTL-8D
8
Rc1/2
6.5
6.5
16
64.5
32.5
16.2
48.3
32
25
PUWTL-10A
10
Rc1/8
8
5
19
55.9
31.9
17.5
38.4
24
24
PUWTL-10B
10
Rc1/4
8
7.5
19
55.9
31.9
17.5
38.4
24
24
PUWTL-10C
10
Rc3/8
8
8
19
56.9
31.9
17.5
39.4
25
24
PUWTL-10D
10
Rc1/2
8
8
19
64.9
32.9
17.5
47.4
32
25
PUWTL-12A
12
Rc1/8
10
5
22
64.3
35.3
23
41.3
29
25
PUWTL-12B
12
Rc1/4
10
7.5
22
64.3
35.3
23
41.3
29
25
PUWTL-12C
12
Rc3/8
10
10
22
64.3
35.3
23
41.3
29
25
PUWTL-12D
12
Rc1/2
10
10
22
67.3
35.3
23
44.3
32
25
編 號
口徑
d
A
d1
d2
B
L
L1
L2
L3
L4
L5
PUWTL-3.2A
3.2
Rc1/8
2.7
5
10
43.5
34
13
30.5
20
17
PUWTL-3.2B
3.2
Rc1/4
2.7
5
10
45.5
34
13
32.5
22
17
PUWTL-6.35A
6.35
Rc1/8
5
5
14
45.5
37
15
30.5
20
18.5
PUWTL-6.35B
6.35
Rc1/4
5
5
14
47.5
37
15
32.5
22
18.5
PUWTL-6.35C
6.35
Rc3/8
5
5
14
54
44
15
39
25
22
PUWTL-6.35D
6.35
Rc1/2
5
5
14
64
50
15
49
32
25
PUWTL-9.52A
9.52
Rc1/8
7.5
5
17
54
44
17.5
36.5
24
22
PUWTL-9.52B
9.52
Rc1/4
7.5
7.5
17
54
44
17.5
36.5
24
22
PUWTL-9.52C
9.52
Rc3/8
7.5
7.5
17
55
44
17.5
37.5
25
22
PUWTL-9.52D
9.52
Rc1/2
7.5
7.5
17
65
50
17.5
47.5
32
25
PUWTL-12.7A
12.7
Rc1/8
10
5
22
65
50
24
41
29
25
PUWTL-12.7B
12.7
Rc1/4
10
7.5
22
65
50
24
41
29
25
PUWTL-12.7C
12.7
Rc3/8
10
10
22
65
50
24
41
29
25
PUWTL-12.7D
12.7
Rc1/2
10
10
22
68
50
24
41
32
25
