不銹鋼接頭
SUS316 Tube Fitting

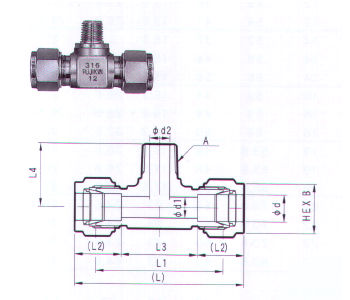

MALE BRANCH TEE
編 號
口徑
d
A
d1
d2
B
L
L1
L2
L3
L4
PUWTS-3A
3
Rc1/8
2.4
5
10
47.4
34
13.1
21.2
20
PUWTS-3B
3
Rc1/4
2.4
5
10
47.4
34
13.1
21.2
22
PUWTS-4A
4
Rc1/8
3
5
12
49
36
13.6
21.8
20
PUWTS-4B
4
Rc1/4
3
5
12
49
36
13.6
21.8
22
PUWTS-6A
6
Rc1/8
5
5
14
52
37
15.5
21
20
PUWTS-6B
6
Rc1/4
5
5
14
52
37
15.5
21
22
PUWTS-6C
6
Rc3/8
5
5
14
59
44
15.5
28
25
PUWTS-6D
6
Rc1/2
5
5
14
65
50
15.5
34
32
PUWTS-8A
8
Rc1/8
6.5
5
16
59
44
16.2
26.6
24
PUWTS-8B
8
Rc1/4
6.5
6.5
16
59
44
16.2
26.6
24
PUWTS-8C
8
Rc3/8
6.5
6.5
16
59
44
16.2
26.6
25
PUWTS-8D
8
Rc1/2
6.5
6.5
16
65
50
16.2
32.6
32
PUWTS-10A
10
Rc1/8
8
5
19
63.8
48
17.5
28.8
24
PUWTS-10B
10
Rc1/4
8
7.5
19
63.8
48
17.5
28.8
24
PUWTS-10C
10
Rc3/8
8
8
19
63.8
48
17.5
28.8
25
PUWTS-10D
10
Rc1/2
8
8
19
65.8
50
17.5
30.8
32
PUWTS-12A
12
Rc1/8
10
5
22
70.6
50
23
24.6
29
PUWTS-12B
12
Rc1/4
10
7.5
22
70.6
50
23
24.6
29
PUWTS-12C
12
Rc3/8
10
10
22
70.6
50
23
24.6
29
PUWTS-12D
12
Rc1/2
10
10
22
70.6
50
23
24.6
32
編 號
口徑
d
A
d1
d2
B
L
L1
L2
L3
L4
PUWTS-3.2A
3.2
Rc1/8
2.7
5
10
47
34
13
21
20
PUWTS-3.2B
3.2
Rc1/4
2.7
5
10
47
34
13
21
22
PUWTS-6.35A
6.35
Rc1/8
5
5
14
51
37
15
21
20
PUWTS-6.35B
6.35
Rc1/4
5
5
14
51
37
15
21
22
PUWTS-6.35C
6.35
Rc3/8
5
5
14
58
44
15
28
25
PUWTS-6.35D
6.35
Rc1/2
5
5
14
64
50
15
34
32
PUWTS-9.52A
9.52
Rc1/8
7.5
5
17
60
44
17.5
25
24
PUWTS-9.52B
9.52
Rc1/4
7.5
7.5
17
60
44
17.5
25
24
PUWTS-9.52C
9.52
Rc3/8
7.5
7.5
17
60
44
17.5
25
25
PUWTS-9.52D
9.52
Rc1/2
7.5
7.5
17
66
50
17.5
31
32
PUWTS-12.7A
12.7
Rc1/8
10
5
22
72
50
24
24
29
PUWTS-12.7B
12.7
Rc1/4
10
7.5
22
72
50
24
24
29
PUWTS-12.7C
12.7
Rc3/8
10
10
22
72
50
24
24
29
PUWTS-12.7D
12.7
Rc1/2
10
10
22
72
50
24
24
32
