不銹鋼接頭
SUS316 Tube Fitting

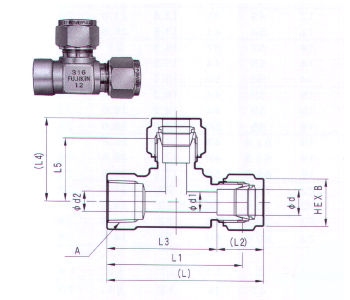

FEMALE RUN TEE
編 號
口徑
d
A
d1
d2
B
L
L1
L2
L3
L4
L5
PUWTLG-3A
3
Rc1/8
2.4
7
10
43.7
37
13.1
30.6
23.7
17
PUWTLG-3B
3
Rc1/4
2.4
7
10
48.2
41.5
13.1
35.1
26.2
19.5
PUWTLG-4A
4
Rc1/8
3
7
12
44.5
38
13.6
30.9
24.5
18
PUWTLG-4B
4
Rc1/4
3
7
12
49
42.5
13.6
35.4
27
20.5
PUWTLG-6A
6
Rc1/8
5
7
14
46
38.5
15.5
30.5
26
18.5
PUWTLG-6B
6
Rc1/4
5
7
14
51.5
44
15.5
36
29.5
22
PUWTLG-6C
6
Rc3/8
5
7
14
58.5
51
15.5
43
32.5
25
PUWTLG-8A
8
Rc1/8
6.5
7
16
51.5
44
16.2
35.3
29.5
22
PUWTLG-8B
8
Rc1/4
6.5
7
16
51.5
44
16.2
35.3
29.5
22
PUWTLG-8C
8
Rc3/8
6.5
7
16
58.5
51
16.2
42.3
32.5
25
PUWTLG-10A
10
Rc1/8
8
7
19
57.9
50
17.5
40.4
31.9
24
PUWTLG-10B
10
Rc1/4
8
8
19
57.9
50
17.5
40.4
31.9
24
PUWTLG-10C
10
Rc3/8
8
8
19
58.9
51
17.5
41.4
32.9
25
PUWTLG-12A
12
Rc1/8
10
7
22
61.3
51
23
38.3
35.3
25
PUWTLG-12B
12
Rc1/4
10
10
22
61.3
51
23
38.3
35.3
25
PUWTLG-12C
12
Rc3/8
10
10
22
61.3
51
23
38.3
35.3
25
編 號
口徑
d
A
d1
d2
B
L
L1
L2
L3
L4
L5
PUWTLG-3.2A
3.2
Rc1/8
2.7
7
10
43.5
37
13
30.5
23.5
17
PUWTLG-3.2B
3.2
Rc1/4
2.7
7
10
48
41.5
13
35
26
19.5
PUWTLG-6.35A
6.35
Rc1/8
5
7
14
45.5
38.5
15
30.5
25.5
18.5
PUWTLG-6.35B
6.35
Rc1/4
5
7
14
51
44
15
36
29
22
PUWTLG-6.35C
6.35
Rc3/8
5
7
14
58
51
15
43
32
25
PUWTLG-9.52A
9.52
Rc1/8
7.5
7
17
52
44
17.5
34.5
30
22
PUWTLG-9.52B
9.52
Rc1/4
7.5
7.5
17
52
44
17.5
34.5
30
22
PUWTLG-9.52C
9.52
Rc3/8
7.5
7.5
17
59
51
17.5
41.5
33
25
PUWTLG-12.7A
12.7
Rc1/8
10
7
22
62
51
24
38
36
25
PUWTLG-12.7B
12.7
Rc1/4
10
10
22
62
51
24
38
36
25
PUWTLG-12.7C
12.7
Rc3/8
10
10
22
62
51
24
38
36
25
