不銹鋼接頭
SUS316 Tube Fitting

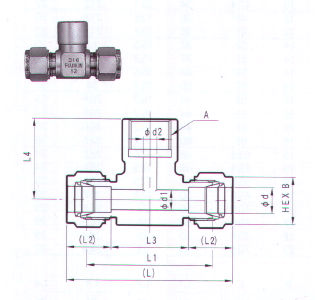

FEMALE BRANCH TEE (G)
編 號
口徑
d
A
d1
d2
B
L
L1
L2
L3
L4
PUWTG-3AF
3
G1/8
2.4
5.5
10
47.4
34
13.1
21.2
22
PUWTG-3BF
3
G1/4
2.4
5.5
10
52.4
39
13.1
26.2
25.5
PUWTG-4AF
4
G1/8
3
5.5
12
49
36
13.6
21.8
22
PUWTG-4BF
4
G1/4
3
5.5
12
54
41
13.6
26.8
25.5
PUWTG-6AF
6
G1/8
5
5.5
14
52
37
15.5
21
22
PUWTG-6BF
6
G1/4
5
5.5
14
59
44
15.5
28
25.5
PUWTG-6CF
6
G3/8
5
55
14
65
50
15.5
34
32
PUWTG-8AF
8
G1/8
6.5
5.5
16
59
44
16.2
26.6
22
PUWTG-8BF
8
G1/4
6.5
5.5
16
59
44
16.2
26.6
25.5
PUWTG-8CF
8
G3/8
6.5
5.5
16
65
50
16.2
32.6
32
PUWTG-10AF
10
G1/8
8
5.5
19
63.8
48
17.5
28.8
26
PUWTG-10BF
10
G1/4
8
5.5
19
63.8
48
17.5
28.8
26
PUWTG-10CF
10
G3/8
8
5.5
19
65.8
50
17.5
30.8
32
PUWTG-12AF
12
G1/8
10
5.5
22
70.6
50
23
24.6
26
PUWTG-12BF
12
G1/4
10
5.5
22
70.6
50
23
24.6
26
PUWTG-12CF
12
G3/8
10
5.5
22
70.6
50
23
24.6
32
PUWTG-12DF
12
G1/2
10
5.5
22
80.6
60
23
24.6
36
編 號
口徑
d
A
d1
d2
B
L
L1
L2
L3
L4
PUWTG-3.2AF
3.2
G1/8
2.7
5.5
10
47
34
13
21
22
PUWTG-3.2BF
3.2
G1/4
2.7
5.5
10
52
39
13
26
25.5
PUWTG-6.35AF
6.35
G1/8
5
5.5
14
51
37
15
21
22
PUWTG-6.35BF
6.35
G1/4
5
5.5
14
58
44
15
28
25.5
PUWTG-6.35CF
6.35
G3/8
5
5.5
14
64
50
15
34
32
PUWTG-9.52AF
9.52
G1/8
7.5
5.5
17
60
44
17.5
25
22
PUWTG-9.52BF
9.52
G1/4
7.5
5.5
17
60
44
17.5
25
25.5
PUWTG-9.52CF
9.52
G3/8
7.5
5.5
17
66
50
17.5
31
32
PUWTG-12.7AF
12.7
G1/8
10
5.5
22
72
50
24
24
26
PUWTG-12.7BF
12.7
G1/4
10
5.5
22
72
50
24
24
26
PUWTG-12.7CF
12.7
G3/8
10
5.5
22
72
50
24
24
22
PUWTG-12.7DF
12.7
G1/2
10
5.5
22
82
60
24
24
36
