不銹鋼接頭
SUS316 Tube Fitting

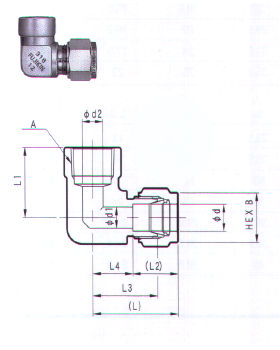

FEMALE ELBOW
編 號
口徑
d
A
d1
d2
B
L
L1
L2
L3
L4
PUWLG-3A
3
Rc1/8
2.4
7
10
23.7
20
13.1
17
10.6
PUWLG-3B
3
Rc1/4
2.4
7
10
26.2
22
13.1
19.5
13.1
PUWLG-4B
4
Rc1/8
3
7
12
27
22
13.6
20.5
13.4
PUWLG-6A
6
Rc1/8
5
7
14
26
20
15.5
18.5
10.5
PUWLG-6B
6
Rc1/4
5
7
14
29.5
22
15.5
22
14
PUWLG-6C
6
Rc3/8
5
7
14
32.5
26
15.5
25
17
PUWLG-8A
8
Rc1/8
6.5
7
16
29.5
22
16.2
22
13.3
PUWLG-8B
8
Rc1/4
6.5
7
16
29.5
22
16.2
22
13.3
PUWLG-8C
8
Rc3/8
6.5
7
16
32.5
26
16.2
25
16.3
PUWLG-10A
10
Rc1/8
8
7
19
31.9
26
17.5
24
14.4
PUWLG-10B
10
Rc1/4
8
8
19
31.9
26
17.5
24
14.4
PUWLG-10C
10
Rc3/8
8
8
19
32.9
26
17.5
25
15.4
PUWLG-12A
12
Rc1/8
10
7
22
35.3
26
23
25
12.3
PUWLG-12B
12
Rc1/4
10
10
22
35.3
26
23
25
12.3
PUWLG-12C
12
Rc3/8
10
10
22
35.3
26
23
25
12.3
編 號
口徑
d
A
d1
d2
B
L
L1
L2
L3
L4
PUWLG-3.2A
3.2
Rc1/8
2.7
7
10
23.5
20
13
17
10.5
PUWLG-3.2B
3.2
Rc1/4
2.7
7
10
26
22
13
19.5
13
PUWLG-6.35A
6.35
Rc1/8
5
7
14
25.5
20
15
18.5
10.5
PUWLG-6.35B
6.35
Rc1/4
5
7
14
29
22
15
22
14
PUWLG-6.35C
6.35
Rc3/8
5
7
14
32
26
15
25
17
PUWLG-9.52A
9.52
Rc1/8
7.5
7
17
30
22
17.5
22
12.5
PUWLG-9.52B
9.52
Rc1/4
7.5
7.5
17
30
22
17.5
22
12.5
PUWLG-9.52C
9.52
Rc3/8
7.5
7.5
17
33
26
17.5
25
15.5
PUWLG-12.7A
12.7
Rc1/8
10
7
22
36
26
24
25
12
PUWLG-12.7B
12.7
Rc1/4
10
10
22
36
26
24
25
12
PUWLG-12.7C
12.7
Rc3/8
10
10
22
36
26
24
25
12
